Scraper conveyors 1^1/2", 2^1/2" - gauge

Perfect for conveying all types of chips, either dry or with coolant

Advantages:

Fewer interruptions of automatic cycles shutdowns
Less bed heating
Less idle downtime
No manpower requiered necessary for swarf removal
Coolant recovery
Space saving conveyors built into the machines

The scraper conveyors are used for transporting materials in bulk or casting swarf, steel, cuttings, brass or aluminium, etc.

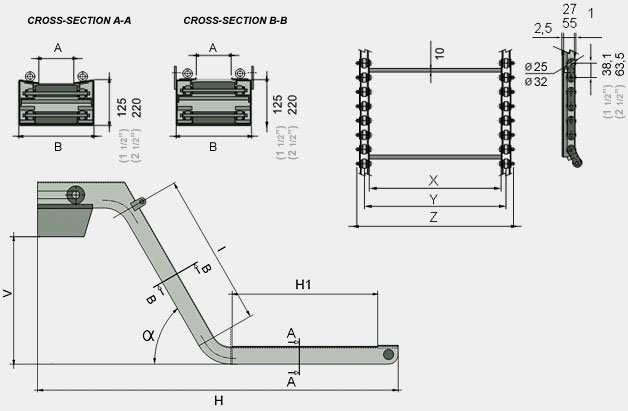

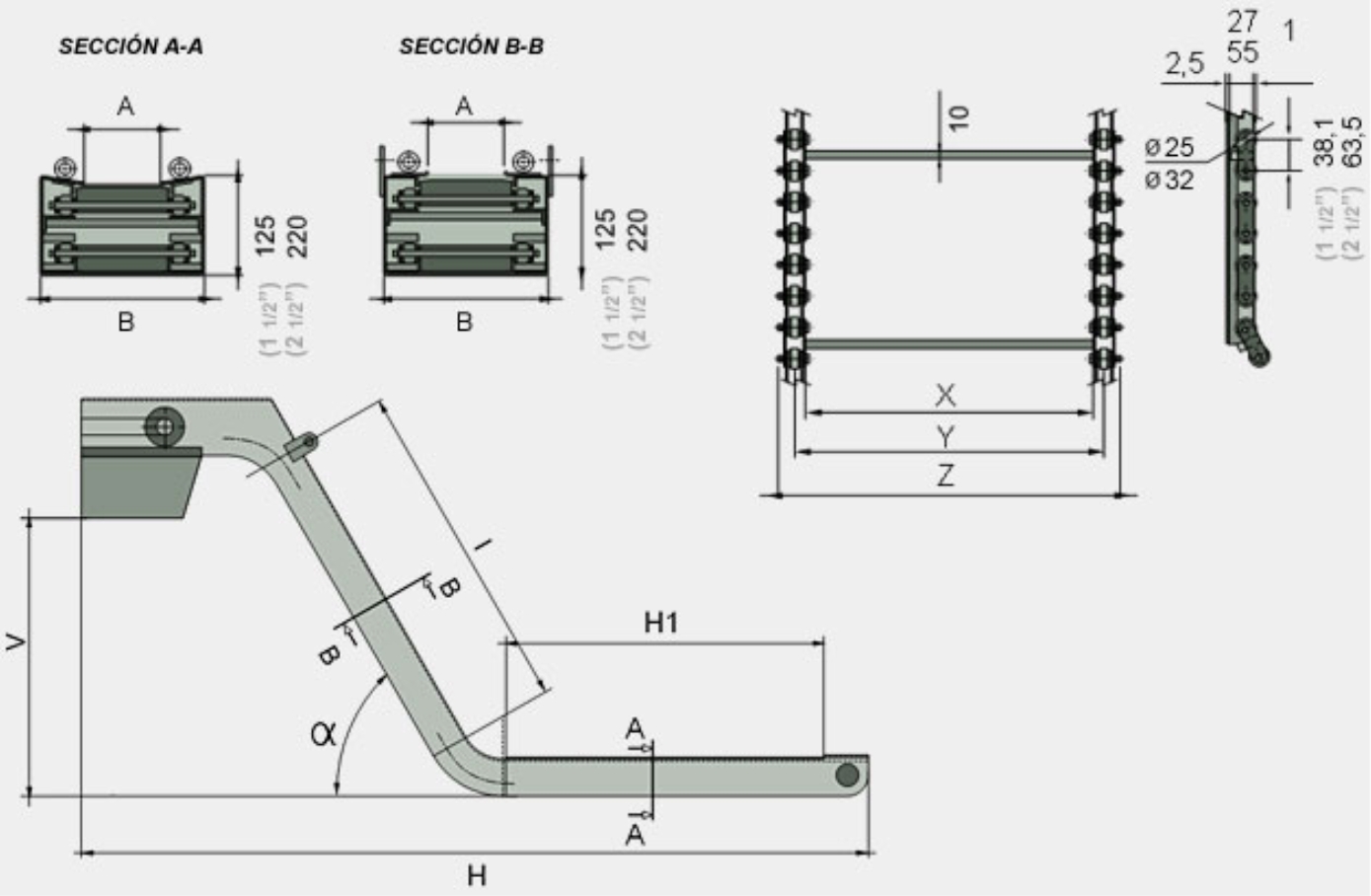

1^1/2" - gauge = (38,1 mm)
2^1/2" - gauge = (63,5 mm)

1^1/2"

Conveyor

MOD.	IX-100R1	IX-150R1	IX-200R1	IX-225R1	IX-250R1	IX-300R1	IX-35 0R1	IX-400R1	IX-450R1
A	82	182	282	382	482	582	682	782	882
B	192	292	392	492	592	692	792	882	992

Scraper belt

WIDTH	100	150	200	225	250	300	350	400	450
X	100	150	200	225	250	300	350	400	450
Y	126	176	226	251	276	326	376	426	476
Z	169	219	269	294	319	369	419	469	519

2^1/2"

Conveyor

MOD.	IX-150R2	IX-200R2	IX-250R2	IX-300R2	IX-350R2	IX-400R2	IX-450R2	IX-600R2	IX-750R2	IX-950R2
A	127	177	277	277	327	377	427	577	727	877
B	265	315	365	415	465	515	565	715	865	1015

Scraper belt

WIDTH	150	200	250	300	350	400	450	600	750	950
X	150	200	250	300	350	400	450	600	750	950
Y	180	230	280	330	380	430	480	630	780	930
Z	230	280	330	380	430	480	530	680	830	980
